Fox Den
Mezzanine

Our number one bestselling cabin

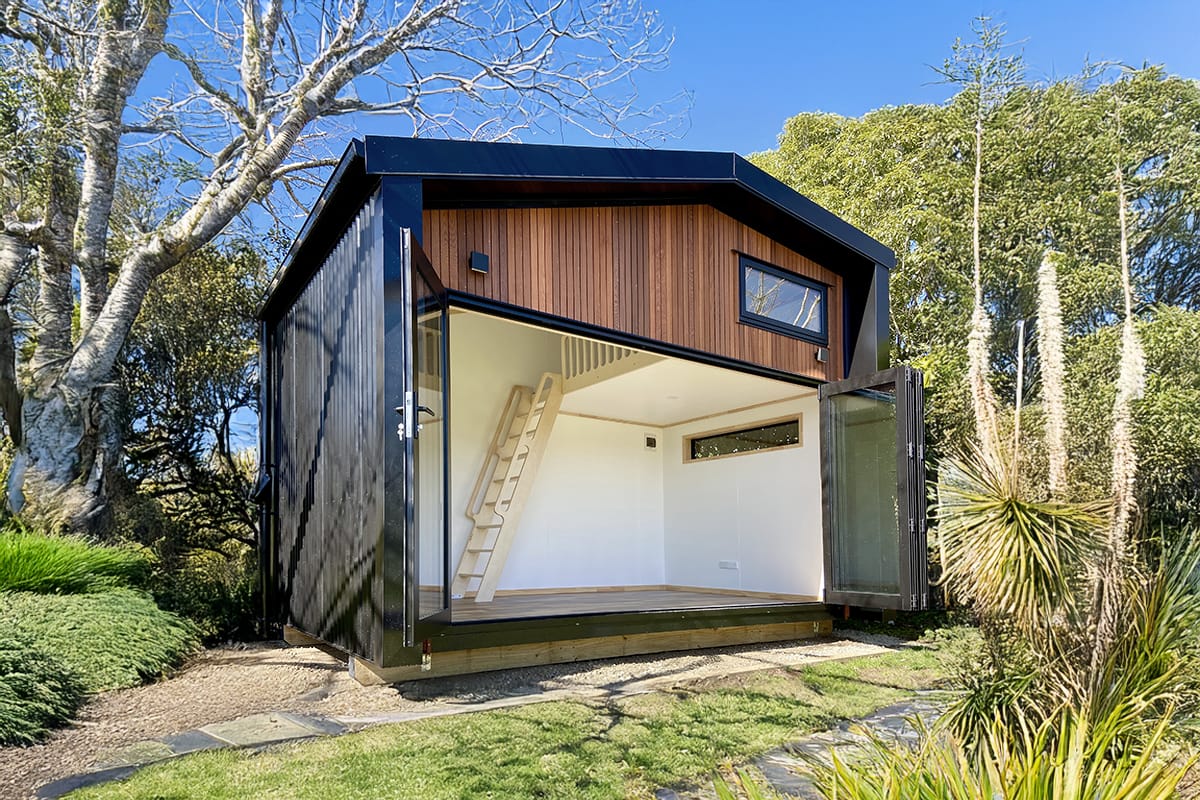

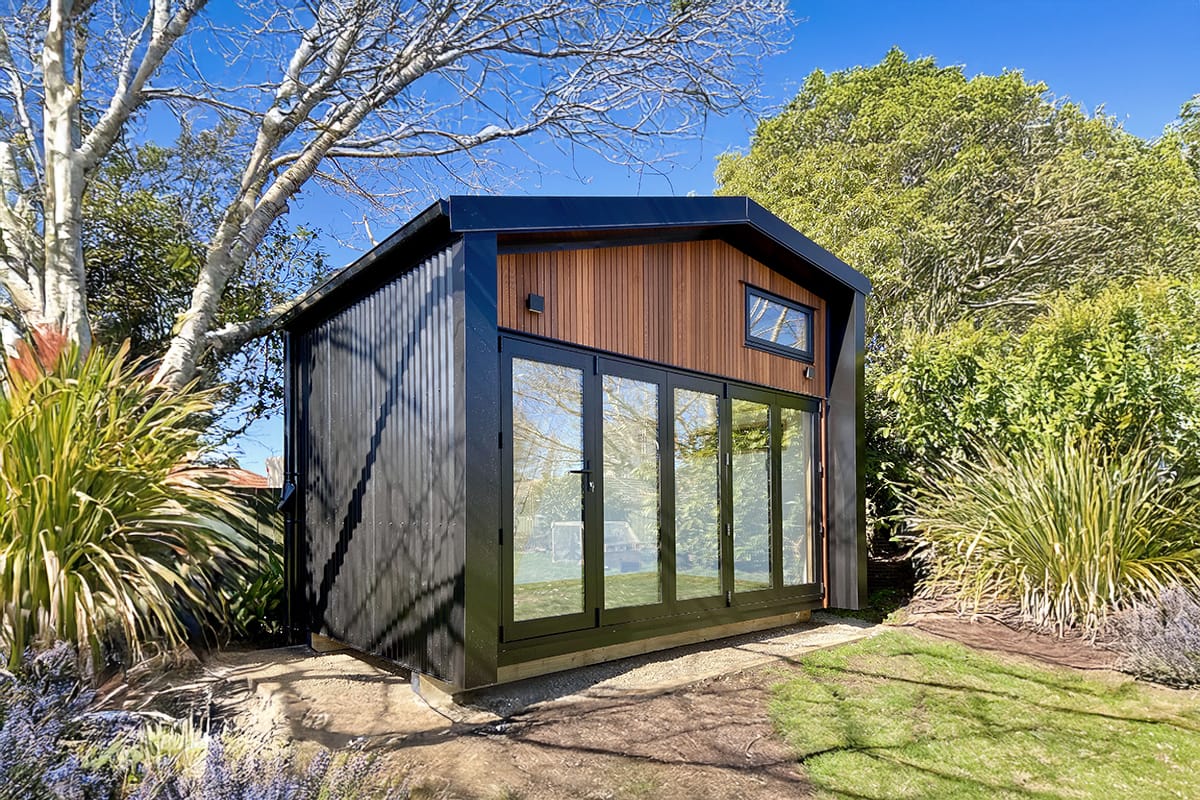

The Fox Den Mezzanine is our number one bestselling cabin by far! The cabin is built on a 10m2 footprint of 4.2m long by 2.4m wide and has an overall usable space of 14m2 because of the mezzanine floor, which can fit a Queen-size bed with ease. Many of our customers use the Fox Den Mezzanine Cabin for Airbnb and Glamping cabins because of the sleek design and useable space.

The Fox Den Mezzanine Cabin has a Ranch Slider Door, two windows downstairs and one upstairs, all double glazed as standard. Lined in either painted hardboard (looks like GIB) or Euro Poplar Ply and clad in vertical Coloursteel Corrugate the Fox Den Mezzanine has a stylish look and is incredibly durable. We take pride in the fact that all our cabins are insulated above NZ code the new Residential Tenancies Act standards, including the South Island and Alpine zone.

At Fox Cabins we believe in creating warm, dry, stylish, and durable living spaces that will withstand the test of time, so every cabin is built to the New Zealand Building Code, to the same standard that you would build your own house.

Our cabins are fully customizable, from lining types, cladding colours to window and door sizes, types and locations, flooring types, skylights, addition of PV solar power, and Heat Pumps.

Purchase Options

$25,200 inc. GST

Specifications

10 m2 footprint with effective floor area of 14m2 (no Council consent required). Exterior dimensions of 4.2m x 2.4m, roof 3.5m high at apex. Mezzanine area of 1.6m x 2.2m, with 2m clearance below

Joinery

All new, double glazed, Ranch Slider as standard which can be upgraded to French or Bifold Doors. Two opening widows downstairs and one upstairs.

Guttering and Spouting

Colour-matched Marley Stormcloud guttering system, featuring over-sized 80mm downspout.

Flooring

Timber style vinyl sheet, various colour choices available. 10 year warranty.

Electrical

Three double outlets, including one with twin USB charger points, LED recessed and Pendent lights inside and exterior sensor light outside. RCD protected, normally hard wired via 25mm conduit installed up through wall into the fuse box but a caravan connection can be added to the build. All installed by licenced electrician and Certificate of Compliance supplied.

Construction

All our cabins and Tiny Houses are designed from full 90mm galvanised steel framing which will not warp, hold moisture or rot. Its stronger and lighter than timber framing and unlike timber, is completely recyclable. The Fox Den Mezzanine Cabin is built on two H4, 200x100 bearers.

Roofing

Roofing: Colorsteel, trapezoid profile.

Cladding

Our standard is Coloursteel corrugate profile, vertically fixed, but we can offer a range of cladding.

Exterior Fixings

Stainless steel or galvanized as required.

Insulation

Floor – R1.4, Walls – R2.4, Ceilings – R3.9. For the steel framing thermal break, we go to ‘best practice’ above code and sheet the entire building with 10mm Expol polystyrene rather than the cheaper method of battens. All insulation is above NZ Building Code and the new Residential Tenancies Act standards, including the South Island and Alpine zone.

Smoke Alarm

10 year Photoelectric Smoke Alarm. Meets the requirements for the Residential Tenancies Act for rental properties.

“We have made our son very happy with a unique Fox Den Mezzanine Cabin. His new room (sleep-out) is perfectly designed and offers him everything he needs to live a teenager’s life. Fox Cabins installed cabin with triple glazed windows and doors from Ecowindows, which means extra insulation and noise control. Not unimportant in a teenager’s room…” Tina & Thomas

Talk to us about a custom design. Because every cabin is custom made to your specifications, we can adapt colours, windows, doors, interior linings, flooring, create off grid, and much more.

Contact our team now on 07-788-0101 or by using our contact form.
